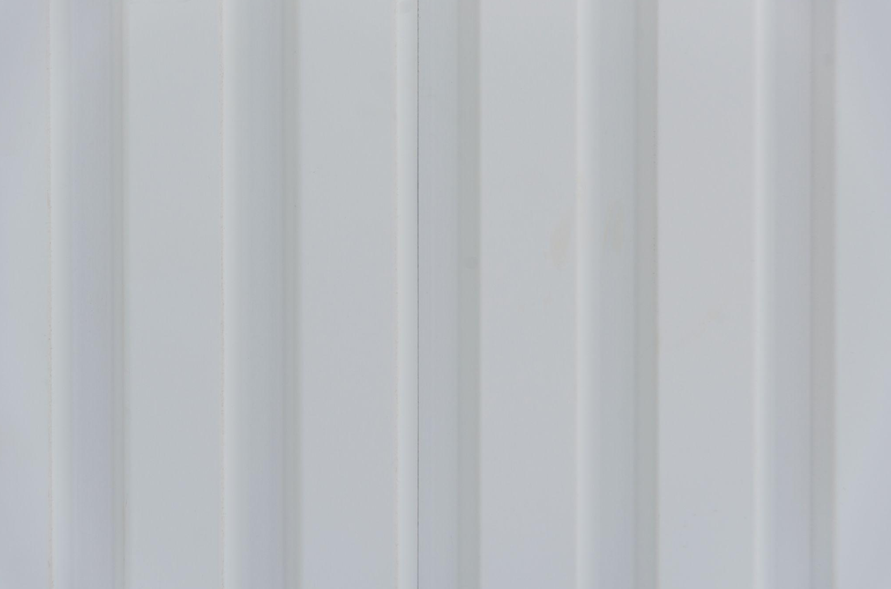

Why 50mm Sandwich Panel Options Are Ideal for Light-Duty Cold Storage Applications

A 50mm sandwich panel provides the optimal balance of thermal resistance and structural integrity for environments maintaining temperatures between 2°C and 10°C, such as floral storage and food preparation areas.

Key takeaways

• 50mm sandwich panels: provide efficient insulation for light-duty cold storage applications
• Thermal performance: supports stable temperatures between 2°C and 12°C
• Lightweight construction: reduces structural load and installation complexity
• Cost efficiency: balances energy savings with lower material and transport costs

In the design of modern cold storage facilities, selecting the correct insulation thickness is a critical decision that impacts both energy efficiency and initial capital expenditure. While heavy-duty freezers require much thicker insulation, light-duty applications often find their ‘sweet spot’ at the 50mm mark.

Using a 50mm sandwich panel allows facility managers to achieve necessary thermal barriers without the unnecessary cost and bulk of thicker alternatives. This guide explores why this specific thickness has become the industry standard for ambient-cool environments in 2026.

Understanding the Composite Structure of a Sandwich Panel

A sandwich panel is a composite building material consisting of a rigid, insulating core sandwiched between two layers of structural metal skin. In most cold storage applications, the skins are made of galvanised steel with a food-grade, antibacterial coating.

The core is typically composed of Expanded Polystyrene (EPS), Polyisocyanurate (PIR), or Mineral Wool. For light-duty applications, EPS or PIR cores are preferred due to their high strength-to-weight ratios and excellent thermal properties.

Component Breakdown

• Outer Skins: Usually 0.4mm to 0.6mm steel, providing impact resistance and a hygienic surface.
• Insulating Core: Provides the thermal break that prevents heat transfer from the external environment.
• Joining System: Most panels utilise a ‘slip-joint’ or ‘tongue-and-groove’ system to ensure a vapour-tight seal at the seams.

Thermal Efficiency and the ‘Delta T’ Factor

The primary goal of any insulated panel is to manage the ‘Delta T,’ which is the temperature difference between the inside and outside of the room. For light-duty cool rooms, this difference is usually moderate, often ranging from 15°C to 25°C.

A 50mm sandwich panel offers an R-value that is perfectly calibrated for these moderate temperature gradients. Installing a thicker panel in these scenarios often yields diminishing returns, as the energy savings do not always offset the higher material costs.

Panel Thickness	Typical R-Value (EPS)	Recommended Temp Range (°C)	Common Application
50mm	1.25 – 1.50	2°C to 12°C	Floral storage, dairy rooms, food preparation
75mm	1.90 – 2.10	0°C to 5°C	Meat processing, bulk dairy
100mm	2.50 – 2.75	-5°C to 2°C	Walk-in chillers
150mm+	3.80+	-18°C and below	Industrial freezers

Table 1: Comparing thermal performance

Advantages of 50mm Thickness in Light-Duty Settings

Choosing a 50mm profile offers several logistical and financial advantages over heavier insulation. These benefits are particularly evident in urban facilities where space is at a premium and installation timelines are tight.

1. Maximising Internal Floor Space

In small-scale commercial kitchens or retail floral shops, every centimetre of floor space matters. Thinner panels allow for a larger internal storage volume while occupying a smaller external footprint.

2. Reduced Structural Loading

A 50mm sandwich panel is significantly lighter than a 100mm or 150mm panel. This reduced weight means the panels are easier to handle and place less stress on the existing building structure or support steelwork.

3. Cost-Effectiveness

Lower material volume directly translates to lower purchase prices and reduced shipping costs. For businesses operating on tight margins, this allows for the construction of high-quality cool rooms without excessive overhead.

• Faster Installation: Lighter panels require less heavy lifting equipment and fewer personnel to manoeuvre.
• Ease of Modification: 50mm panels are easier to cut and fit around existing plumbing or electrical conduits.
• Standardisation: This thickness is widely available, ensuring that replacement panels or future expansions are easy to source.

Key Applications for Light-Duty Insulation

Not every cold storage environment needs to be a frozen vault. Many industries require ‘cool’ rather than ‘cold’ conditions to preserve product integrity and comply with safety standards.

Floral and Horticultural Storage

Flowers require high humidity and temperatures generally between 4°C and 8°C. A 50mm sandwich panel provides the necessary thermal barrier to keep the air conditioning system from overworking while maintaining the delicate moisture levels needed for fresh blooms.

Pharmaceutical ‘Ambient-Cool’ Rooms

Many medications and vaccines must be stored in a controlled environment between 2°C and 8°C. Insulated panels ensure that even if the building’s main HVAC system fails, the specialised storage room retains its temperature for a longer duration.

Food Preparation and Clean Rooms

Commercial kitchens use these panels to line food prep areas. In these cases, the insulation is secondary to the hygienic, easy-to-clean surface provided by the steel skins, though the 50mm core still helps maintain a comfortable working temperature.

Structural Integrity and Spanning Capabilities

Despite being relatively thin, a 50mm sandwich panel possesses remarkable structural strength. The ‘sandwich’ effect makes the panel much stiffer than the sum of its parts, allowing it to span several metres without additional support.

This spanning capability is vital for ceiling panels in small-to-medium cool rooms. By eliminating the need for complex internal framing, the facility remains cleaner and easier to maintain over time.

Span Length (m)	Recommended Load Capacity (kPa)	Application Suitability
Up to 2.5m	1.50 – 1.80	High wind load / Walk-on ceiling
2.5m to 4.0m	1.00 – 1.20	Standard wall / Indoor ceiling
Above 4.0m	< 0.80	Internal partitions only

Table 2: Spanning and loading specifications

Sustainability and 2026 Energy Standards

As energy regulations tighten in 2026, the focus has shifted toward ‘right-sizing’ insulation. Over-insulating a room can lead to excessive embodied carbon in the building materials, while under-insulating leads to energy waste.

The sandwich panel industry has responded by creating cores with better thermal conductivity ratings (Lambda values). This means that a modern 50mm panel often performs as well as older 75mm panels, allowing for a more sustainable and efficient build.

• Recyclability: Most steel skins are 100% recyclable at the end of the panel’s 20-30 year lifespan
• Vapour Barrier Performance: The interlocking joints prevent air leakage, which is often a bigger cause of energy loss than the thickness of the insulation itself
• Reflective Surfaces: Bright white finishes reflect light internally, reducing the number of lumens needed to illuminate the storage area

See also: Why Businesses Are Investing in Smarter Electrical Solutions

Find the Right Balance and Make an Informed Decision!

For light-duty cold storage, the 50mm profile remains one of the most practical and cost-effective insulation solutions. It delivers reliable thermal performance, structural strength, and energy efficiency for retail, hospitality, and pharmaceutical environments without adding unnecessary construction costs.

If you are planning a cool room or light-duty cold storage facility, consulting an experienced panel specialist can help you select the most efficient and cost-effective insulation solution for your operational needs.
